36: OPM screen

⊴ PREV

NEXT ⊵

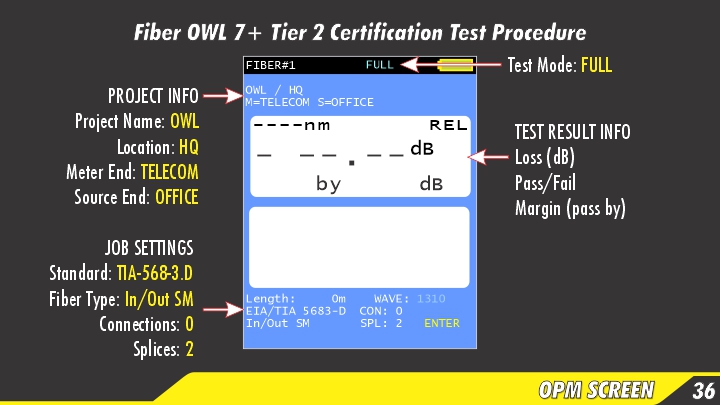

Let's take a moment to review the power meter test results screen, to make sure that the information is correct.

The test mode will be listed at the top of the screen. For this test, this should be FULL.

Project information will be listed next, including job name, location, and meter & source locations.

Near the bottom of the screen will show the rest of the job settings, including standard, fiber type, connections, and splices.
