23: Check Power Meter Cable

22: Review and Record Reference Levels

⊴ PREV

NEXT ⊵

24: Connect Both Test Cables Together

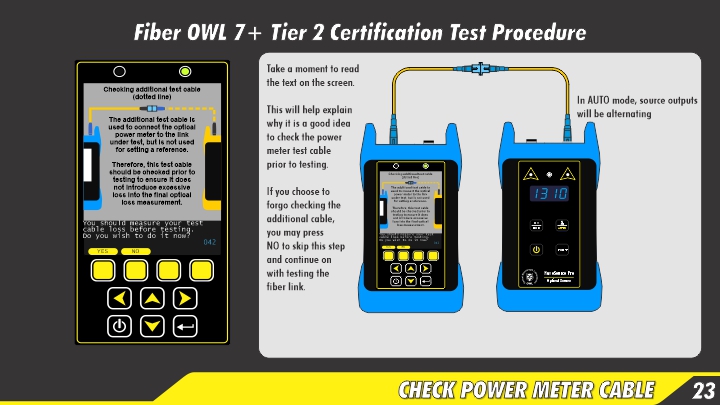

Once the references have been set, the user is given the opportunity to check the power meter test cable.

The meter will display a short explanation about checking the additional test cable.

Press YES to check the cable, or press NO to skip this step.
