FIBER OWL 4 BOLT SERIES TEST KITS
Patch cords not included with test kits. Call 262-473-0643 for more information.	Click image for info about the Fiber OWL 4 BOLT optical power meter	NOTE: Fiber OWL 4 BOLT Series multimode test kits are Encircled Flux compliant when used with EF-compliant Mode Controller cables.  Click here to learn more.
		10-GIG LINK CERTIFICATION Certify 10-gigabit optical fiber links
SCROLL TO THE BOTTOM OF PAGE FOR ADDITIONAL HELPFUL FIBER OPTICS VIDEOS

FIBER OWL 4 BOLT SERIES AUTO-WAVELENGTH TEST KITS
Kit #	Part Number	Click the links below to view documentation
1)	KIT-FO4B-WSMDSDxx	Optical Power Meter	Light Source(s)	List Price
xx : specify light source connector type (SC,ST)		Fiber OWL 4 BOLT (Model #: FO-4B)	WaveSource Quad MM/SM (Model #: WS-MDSDxx) Multimode Port: 850/1300nm Singlemode Port: 1310/1550nm	1880.00
		VIDEOS
		MULTIMODE FIBER OPTIC LINK CERTIFICATION	SINGLEMODE FIBER OPTIC LINK CERTIFICATION	PRODUCT OVERVIEW
2)	KIT-FO4B-WSMDxx	Optical Power Meter	Light Source(s)	List Price
xx : specify light source connector type (SC,ST)		Fiber OWL 4 BOLT (Model #: FO-4B)	WaveSource MM (Model #: WS-MDxx) Multimode Port: 850/1300nm	1185.00
		VIDEOS
		MULTIMODE FIBER OPTIC LINK CERTIFICATION		PRODUCT OVERVIEW
3)	KIT-FO4B-WSMDVxx	Optical Power Meter	Light Source(s)	List Price
xx : specify light source connector type (SC,ST)		Fiber OWL 4 BOLT (Model #: FO-4B)	WaveSource MM w/integrated VFL (Model #: WS-MDVxx) Multimode Port: 850/1300nm VFL Port: 650nm	1385.00
		VIDEOS
		MULTIMODE FIBER OPTIC LINK CERTIFICATION		PRODUCT OVERVIEW
4)	KIT-FO4B-WSSDxx	Optical Power Meter	Light Source(s)	List Price
xx : specify light source connector type (SC,ST)		Fiber OWL 4 BOLT (Model #: FO-4B)	WaveSource SM (Model #: WS-SDxx) Singlemode Port: 1310/1550nm	1495.00
		VIDEOS
			SINGLEMODE FIBER OPTIC LINK CERTIFICATION	PRODUCT OVERVIEW
5)	KIT-FO4B-WSVSDxx	Optical Power Meter	Light Source(s)	List Price
xx : specify light source connector type (SC,ST)		Fiber OWL 4 BOLT (Model #: FO-4B)	WaveSource SM w/integrated VFL (Model #: WS-VSDxx) VFL Port: 650nm Singlemode Port: 1310/1550nm	1695.00
		VIDEOS
			SINGLEMODE FIBER OPTIC LINK CERTIFICATION	PRODUCT OVERVIEW

FIBER OWL 4 BOLT SERIES TEST KITS
Kit #	Part Number	Click the links below to view documentation
6)	KIT-FO4B-D285xx	Optical Power Meter	Light Source(s)	List Price
xx : specify light source connector type (SC,ST)		Fiber OWL 4 BOLT (Model #: FO-4B)	Dual OWL 850 (Model #: DO2-85xx) Multimode: 850nm	958.00
		VIDEOS
KIT-FO4B-D285xx		MULTIMODE FIBER OPTIC LINK CERTIFICATION		PRODUCT OVERVIEW
7)	KIT-FO4B-D2xx	Optical Power Meter	Light Source(s)	List Price
xx : specify light source connector type (SC,ST)		Fiber OWL 4 BOLT (Model #: FO-4B)	Dual OWL (Model #: DO2xx) Multimode: 850/1300nm	1185.00
		VIDEOS
KIT-FO4B-D2xx		MULTIMODE FIBER OPTIC LINK CERTIFICATION		PRODUCT OVERVIEW
8)	KIT-FO4B-L2xx	Optical Power Meter	Light Source(s)	List Price
xx : specify light source connector type (SC,ST)		Fiber OWL 4 BOLT (Model #: FO-4B)	Laser OWL (Model #: LO2xx) Singlemode: 1310/1550nm	1420.00
		VIDEOS
KIT-FO4B-L2xx			SINGLEMODE FIBER OPTIC LINK CERTIFICATION	PRODUCT OVERVIEW
9)	KIT-FO4B-D285xx-L213xx	Optical Power Meter	Light Source(s)	List Price
xx : specify light source connector type (SC,ST)		Fiber OWL 4 BOLT (Model #: FO-4B)	Dual OWL 850 (Model #: DO2-85xx) Multimode: 850nm Laser OWL 1310 (Model #: LO2-13xx) Singlemode: 1310nm	1253.00
		VIDEOS
KIT-FO4B-D285xx-L213xx		MULTIMODE FIBER OPTIC LINK CERTIFICATION	SINGLEMODE FIBER OPTIC LINK CERTIFICATION	PRODUCT OVERVIEW
10)	KIT-FO4B-D2xx-L2xx	Optical Power Meter	Light Source(s)	List Price
xx : specify light source connector type (SC,ST)		Fiber OWL 4 BOLT (Model #: FO-4B)	Dual OWL (Model #: DO2xx) Multimode: 850/1300nm Laser OWL (Model #: LO2xx) Singlemode: 1310/1550nm	1805.00
		VIDEOS
KIT-FO4B-D2xx-L2xx		MULTIMODE FIBER OPTIC LINK CERTIFICATION	SINGLEMODE FIBER OPTIC LINK CERTIFICATION	PRODUCT OVERVIEW
Other Useful Links
Fiber OWL 4 BOLT Operations Guide
Fiber OWL 4 BOLT Firmware Update
OWL Reporter Software (with USB driver support for Windows XP, Windows Vista, Windows 7, and Windows 8) (Windows 2000 is not supported)
OWL Reporter Sample Report
Quick Reference Guide Selector
Self-diagnostic Procedure Selector
Power Meter Detector Port Cleaning Procedure
Light Source Optical Port Cleaning Procedure
NOTE: Patch cords are not included with OWL test kits. Please call 262-473-0643 for more information.
NOTE: Products ship with owner's manuals on CD. Adobe Acrobat Reader (tm) is required to view these documents.
Fiber OWL 4 BOLT Series Test Kits for high-power telco testing ONLY
Test kits are available for high-power telco, CATV, and other high-power application testing. Please call 262-473-0643 if you have any questions and we'll help you find the right kit for your needs.

HELPFUL VIDEOS
VIDEO: Choosing a Test Kit	VIDEO: Universal Ports	VIDEO: Mandrels	VIDEO: Fiber Optic Reference Methods
VIDEO: Fiber Optic Cabling Standards	VIDEO: Storing Data in Fiber OWL certification power meters	VIDEO: Entering Data Into Text Entry Fields	VIDEO: Removing Link Information and Stored Data
VIDEO: Interpreting OWL Reporter Certification Reports	VIDEO: Merging OWL Reporter Data Files	VIDEO: MISCONCEPTION: Interchangeable Light Source Connector Ports	VIDEO: Cleaning Optical Ports
VIDEO: Replacing the Fiber OWL 4 power meter battery	VIDEO: Replacing the Light Source Battery	VIDEO: Choosing the Right Patch Cables	LINK CERTIFICATION INSTRUCTIONAL VIDEOS (use the kit part numbers above to locate the correct video)

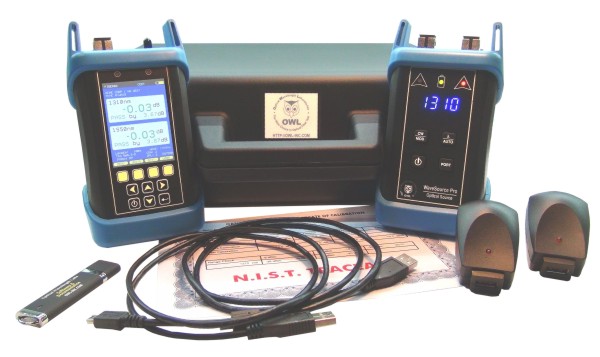

TYPICAL USES: TELCO, WAN, LAN, CATV, IT, Industrial, Manufacturing, and Laboratory Environments Fiber OWL series test kits are ideal for the fiber optic professional who requires standards-based certification of fiber links, including TIA-568, ISO 11801, various Ethernet standards, among others. The Fiber OWL can also be configured with custom standards to meet the needs of various fiber optic applications. Fiber OWL 4 BOLT kits are now 10-Gigabit Ethernet ready. This new update allows fiber optic professionals to certify their fiber links for 10-Gigabit Ethernet, the next generation of fiber network. Each Fiber OWL test kit comes with a N.I.S.T. Traceable Fiber OWL optical power meter one or more complementary fiber optic light sources, based upon your application. Many configurations are available. Included with each test kit are a hard-shell carrying case, protective rubber boots, 9-volt batteries, certificate of NIST-traceability, and a USB flash drive with free OWL Reporter software and operation manual. Fiber OWL 4 BOLT optical power meters come standard with a state-of-the-art UNIVERSAL adapter port system. Two adapter cap options are available, based on the two most common ferrule diameters used in the fiber optics industry: 2.5mm: ST, SC, and FC 1.25mm: LC, MU, and other SFF connectors The flexibility of universal ports saves money on consumables (since test cables wear out over time). Physics and optics do not allow the same universal connector port to work well on any brand of light source. Hence, light sources must have fixed ST, SC, or FC connector ports. There are two versions of Fiber OWL 4 BOLT kits. Fiber OWL 4 BOLT Series Auto-Wavelength Test Kits offer the ultimate in user- friendliness. Not only does the Fiber OWL 4 BOLT perform optical link length tests, but when used together with the WaveSource fiber optic light source in automatic mode, the meter and light source use auto-wavelength switching technology that coordinates wavelengths automatically, without the need for further user intervention. This feature increases productivity by decreasing testing time and human error. The WaveSource line of light sources also includes the least-expensive quad-wavelength fiber optic light source on the market, integrating all four popular wavelengths into one unit (850/1300nm for multimode and 1310/1550nm for singlemode). For a more economical option, Fiber OWL 4 BOLT Series Test Kits use Dual OWL MM sources and/or Laser OWL SM sources to give installers a full-featured certification option for their multimode and/or singlemode fiber links at economical prices. Products ship with owner's manuals on USB flash drive. Adobe Acrobat Reader (tm) is required to view these documents.

FIBER OWL 4 BOLT OPTIONS
In addition to basic power meter functions, Fiber OWL 4 BOLT optical power meters can be configured with one of two different fiber optic test options. PLEASE NOTE: ONLY ONE OF THESE OPTIONS CAN BE INSTALLED IN THE FIBER OWL 4 BOLT, NOT BOTH
Integrated Optical Length Tester Port	OR	Integrated Visual Fault Locator Port
VIDEO: Optical Length Measurement Methods		Flashing red Visual Fault Locator (VFL; also known as VFF) Click the image to learn more about the integrated VFL port
		NOTE: The integrated VFL port replaces the optical length testing port, and adds 200.00 to the list price of the kits shown below. Please call 262-473-0643 for additional information, including part numbers.

All prices on this website are shown in US Dollars (USD)
