| FIBER OWL 7 SERIES CERTIFICATION TEST KITS | |
|
Want to add FULL OTDR capability to these test kits? Click here for more information about Fiber OWL 7+ Tier 2 certification Test Kits |
 |
 NOTE: Fiber OWL 7 Series multimode test kits are Encircled Flux compliant when used with certified EF-compliant Mode Controller cables. Click here to learn more. |
10-GIG LINK CERTIFICATION Certify 10-gigabit optical fiber links |
| SCROLL TO THE BOTTOM OF PAGE FOR ADDITIONAL HELPFUL FIBER OPTICS VIDEOS | |
| Fiber OWL 7X Certification Test Kits | ||||||||||||
| KIT |
PART # CLICK FOR IMAGE |
POWER METER | LIGHT SOURCE | PRICE | ||||||||
| MULTIMODE | SINGLEMODE | VFL | ||||||||||
| LENGTH | VFL |
850/1300 AUTO-TEST |
850nm only |
1300nm only |
1310/1550 AUTO-TEST |
1310nm only |
1550nm only |
|||||
| FIBER OWL 7X AUTO-TESTING CERTIFICATION TEST KITS | ||||||||||||
| 1 | KF7XMS |
 |
-- |
|
-- | -- |
|
-- | -- | -- | 2740.00 |
 |
| 2 | KF7XMX |
|
-- |
|
-- | -- | -- | -- | -- | -- | 1550.00 |
|
| 3 | KF7XMV |
|
-- |
|
-- | -- | -- | -- | -- |
|
1770.00 |
|
| 4 | KF7XSX |
|
-- | -- | -- | -- |
|
-- | -- | -- | 2320.00 |
|
| 5 | KF7XSV |
|
-- | -- | -- | -- |
|
-- | -- |
|
2540.00 |
|
| FIBER OWL 7X BASIC CERTIFICATION TEST KITS | ||||||||||||
| 6 | KF7XD8X |
|
-- | -- |
|
-- | -- | -- | -- | -- | 1305.00 |
|
| 7 | KF7XD83 |
|
-- | -- |
|
|
-- | -- | -- | -- | 1550.00 |
|
| 8 | KF7XL3X |
|
-- | -- | -- | -- | -- |
|
-- | -- | 1560.00 |
|
| 9 | KF7XL35 |
|
-- | -- | -- | -- | -- |
|
|
-- | 2320.00 |
|
| 10 | KF7X-D8X-L3X |
|
-- | -- |
|
-- | -- |
|
-- | -- | 1770.00 |
|
| 11 | KF7X-D83-L35 |
|
-- | -- |
|
|
-- |
|
|
-- | 2775.00 |
|
| Fiber OWL 7V Certification Test Kits | ||||||||||||
| KIT |
PART # CLICK FOR IMAGE |
POWER METER | LIGHT SOURCE | PRICE | ||||||||
| MULTIMODE | SINGLEMODE | VFL | ||||||||||
| LENGTH | VFL |
850/1300 AUTO-TEST |
850nm only |
1300nm only |
1310/1550 AUTO-TEST |
1310nm only |
1550nm only |
|||||
| FIBER OWL 7V AUTO-TESTING CERTIFICATION TEST KITS | ||||||||||||
| 12 | KF7VMS |
|
|
|
-- | -- |
|
-- | -- | -- | 2960.00 |
|
| 13 | KF7VMX |
|
|
|
-- | -- | -- | -- | -- | -- | 1770.00 |
|
| 14 | KF7VMV |
|
|
|
-- | -- | -- | -- | -- |
|
1990.00 |
|
| 15 | KF7VSX |
|
|
-- | -- | -- |
|
-- | -- | -- | 2540.00 |
|
| 16 | KF7VSV |
|
|
-- | -- | -- |
|
-- | -- |
|
2760.00 |
|
| FIBER OWL 7V BASIC CERTIFICATION TEST KITS | ||||||||||||
| 17 | KF7VD8X |
|
|
-- |
|
-- | -- | -- | -- | -- | 1525.00 |
|
| 18 | KF7VD83 |
|
|
-- |
|
|
-- | -- | -- | -- | 1770.00 |
|
| 19 | KF7VL3X |
|
|
-- | -- | -- | -- |
|
-- | -- | 1780.00 |
|
| 20 | KF7VL35 |
|
|
-- | -- | -- | -- |
|
|
-- | 2540.00 |
|
| 21 | KF7V-D8X-L3X |
|
|
-- |
|
-- | -- |
|
-- | -- | 1990.00 |
|
| 22 | KF7V-D83-L35 |
|
|
-- |
|
|
-- |
|
|
-- | 2995.00 |
|
| Fiber OWL 7 Certification Test Kits | ||||||||||||
| KIT |
PART # CLICK FOR IMAGE |
POWER METER | LIGHT SOURCE | PRICE | ||||||||
| MULTIMODE | SINGLEMODE | VFL | ||||||||||
| LENGTH | VFL |
850/1300 AUTO-TEST |
850nm only |
1300nm only |
1310/1550 AUTO-TEST |
1310nm only |
1550nm only |
|||||
| FIBER OWL 7 AUTO-TESTING CERTIFICATION TEST KITS | ||||||||||||
| 23 | KF7-MS | -- | -- |
|
-- | -- |
|
-- | -- | -- | 2410.00 |
|
| 24 | KF7-MX | -- | -- |
|
-- | -- | -- | -- | -- | -- | 1220.00 |
|
| 25 | KF7-MV | -- | -- |
|
-- | -- | -- | -- | -- |
|
1440.00 |
|
| 26 | KF7-SX | -- | -- | -- | -- | -- |
|
-- | -- | -- | 1990.00 |
|
| 27 | KF7-SV | -- | -- | -- | -- | -- |
|
-- | -- |
|
2210.00 |
|
| FIBER OWL 7 BASIC CERTIFICATION TEST KITS | ||||||||||||
| 28 | KF7-D8X | -- | -- | -- |
|
-- | -- | -- | -- | -- | 975.00 |
|
| 29 | KF7-D83 | -- | -- | -- |
|
|
-- | -- | -- | -- | 1220.00 |
|
| 30 | KF7-L3X | -- | -- | -- | -- | -- | -- |
|
-- | -- | 1230.00 |
|
| 31 | KF7-L35 | -- | -- | -- | -- | -- | -- |
|
|
-- | 1990.00 |
|
| 32 | KF7-D8X-L3X | -- | -- | -- |
|
-- | -- |
|
-- | -- | 1440.00 |
|
| 33 | KF7-D83-L35 | -- | -- | -- |
|
|
-- |
|
|
-- | 2445.00 |
|
| Other Useful Links | |
| Fiber OWL 7 Operations Guide |
|
| Fiber OWL 7 Firmware Update |
 |
|
OWLView Software |
|
| OWLView Sample Report |
|
| Power Meter Detector Port Cleaning Procedure |
|
| Light Source Optical Port Cleaning Procedure |
|
| NOTE: Patch cords are not included with OWL test kits. Please call 262-473-0643 for more information. | |
| NOTE: Products ship with owner's manuals on USB flash drive. Adobe Acrobat Reader™ is required to view these documents. | |
|
TYPICAL USES: TELCO, WAN, LAN, CATV, IT, Industrial, Manufacturing,
and Laboratory Environments
Fiber OWL 7 series test kits are ideal for the fiber optic professional who requires standards-based certification of fiber links, including TIA-568, ISO 11801, various Ethernet standards, among others. The Fiber OWL 7 can also be configured with custom standards to meet the needs of various fiber optic applications. Each Fiber OWL 7 test kit comes with a N.I.S.T. Traceable Fiber OWL 7 optical power meter and a WaveSource Pro fiber optic light source, based upon fiber type and wavelength.

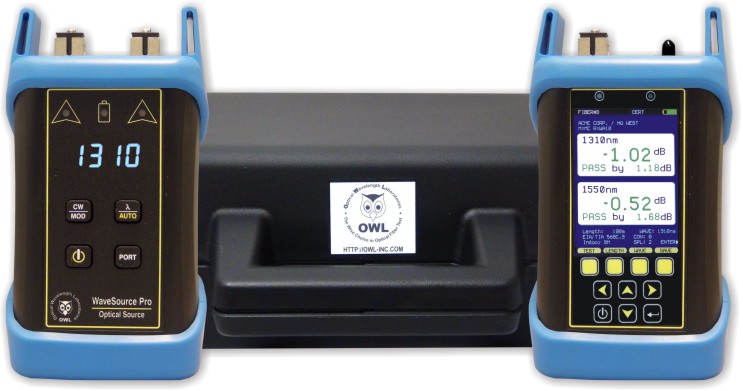

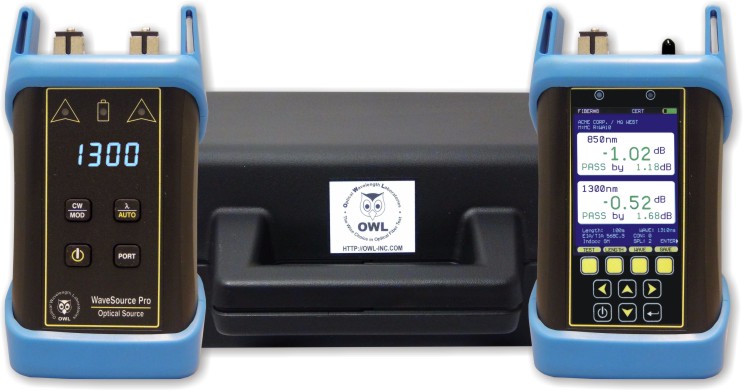

KF7XMS -- multimode (850/1300nm) and singlemode (1310/1550nm) KF7XMX -- multimode (850/1300nm) only KF7XMV -- multimode (850/1300nm) and VFL KF7XSX -- singlemode (1310/1550nm) only KF7XSV -- singlemode (1310/1550nm) and VFL

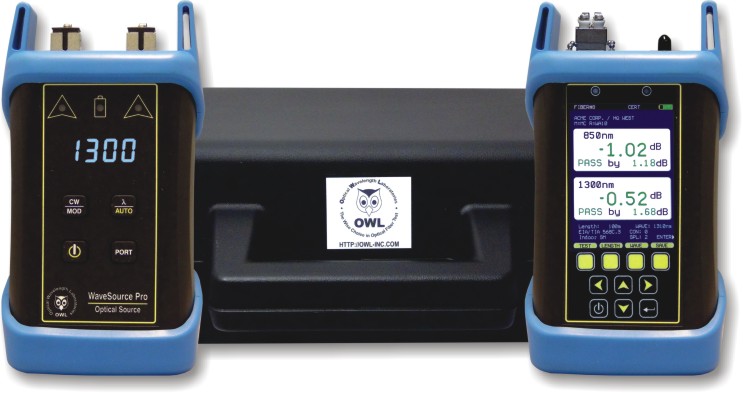

KF7VMS -- multimode (850/1300nm) and singlemode (1310/1550nm) KF7VMX -- multimode (850/1300nm) only KF7VMV -- multimode (850/1300nm) and VFL KF7VSX -- singlemode (1310/1550nm) only KF7VSV -- singlemode (1310/1550nm) and VFL
KF7-MS -- multimode (850/1300nm) and singlemode (1310/1550nm) KF7-MX -- multimode (850/1300nm) only KF7-MV -- multimode (850/1300nm) and VFL KF7-SX -- singlemode (1310/1550nm) only KF7-SV -- singlemode (1310/1550nm) and VFL Fiber OWL 7 optical power meters come standard with a state-of-the-art UNIVERSAL adapter port system. For more information about universal ports, watch our Universal Ports video: Two adapter cap options are available, based on the two most common ferrule diameters used in the fiber optics industry: 2.5mm: ST, SC, and FC 1.25mm: LC, MU, and other SFF connectors The flexibility of universal ports saves money on consumables (since test cables wear out over time). Physics and optics do not allow the same universal connector port to work well on any brand of light source. Hence, light sources must have fixed ST, SC, or FC connector ports. Watch our video about Interchangeable Light Source Ports for more information. |
|||
| HELPFUL VIDEOS | |||
VIDEO: Universal Ports |
VIDEO: Mandrels |
VIDEO: Fiber Optic Reference Methods |
 VIDEO: Fiber Optic Cabling Standards |
VIDEO: MISCONCEPTION: Interchangeable Light Source Connector Ports |
VIDEO: Cleaning Optical Ports |
VIDEO:
Choosing the Right Patch Cables |
|
|
|
Fiber OWL 7 series testers come configured with the new
TIA-568-3.D cabling standard. GO TO SLIDESHOW >>> |
Learn how to use Fiber OWL 7 test kits to certify
fiber links with CERT MODE GO TO SLIDESHOW >>> |
|
  |
  |
