Click here to learn more about this excellent deal
STARTING AS LOW AS 790.00!



PATCH CABLES NOT INCLUDED


NOTE: Installer Series multimode test kits are Encircled Flux compliant when used with EF-compliant Mode Controller cables.

 Click here to learn more.


Sales Brochure
Sooner or later, most installer/contractor jobs will require certification report testing! (click this link for more info)
If you are considering the AFL™/Noyes™ Contractor Series™ test kit, CONSIDER THIS FIRST:

Wouldn't it make more sense to spend less for a test kit with superior specifications AND fiber certification report printing?

That's what you get with OWL Installer Series test kits.
The real value of OWL Installer Series test kits is the ability to certify fiber links, a feature no fiber cable installer should go without. Not only are customers increasingly demanding printed certification reports for their fiber installations, certification reports are also proof of an installer's job well done in case of disputes.

Key advantages of OWL Installer Series test kits:

Affordability. Who can afford to spend a few extra dollars, especially in this economy?

Superior specifications. Better accuracy, wider measurement range, and more wavelength options mean more value for your dollar.

Popular current cabling standards built right in. No matter what current cabling standard your customer requests, you can test it.

PASS/FAIL results in the field. No more guesswork or wondering if the link is "good or not"; you'll know right away without the hassle of manually calculating your link budget.

Data storage/printed test results. A requirement for most fiber optic installations, and is especially important when applying for cabling manufacturer warranties.
Across the board, the OWL Installer Series meets or beats the AFL™/Noyes™ Contractor Series™ where it counts.

It is easy to see why OWL is the WISE choice for installers everywhere!
MULTIMODE/SINGLEMODE TEST KIT
  OWL Model# IS-KIT-Q AFL™/Noyes™ Model# CKSM-2
Price 1640.00 1645.00
Fiber Optic Light Source Wavelengths
Multimode: 850, 1300nm
Singlemode: 1310, 1550nm
All 4 wavelengths in one light source unit Two separate light source units, one each for MM and SM
Optical Power Meter Accuracy ± 0.15 dB ± 0.30 dB
Optical Power Meter Measurement Range +5 to -75 dBm +6 to -60 dBm
Optical Power Meter Calibrated Wavelengths 850, 980, 1300, 1310, 1490, 1550, 1625nm 850, 1300, 1310, 1550
On-screen PASS/FAIL for the following popular cabling standards:

TIA-568
10G Ethernet
1G Ethernet
Legacy Cabling Standards
NO
Data Storage NO
Certification Reports NO
NIST Traceable

MULTIMODE TEST KIT
  OWL Model# IS-KIT-M AFL™/Noyes™ Model# CKM-2
Price 790.00 795.00
Fiber Optic Light Source Wavelengths
Multimode: 850, 1300nm
Optical Power Meter Accuracy ± 0.15 dB ± 0.30 dB
Optical Power Meter Measurement Range +5 to -75 dBm +6 to -60 dBm
Optical Power Meter Calibrated Wavelengths 850, 980, 1300, 1310, 1490, 1550, 1625nm 850, 1300, 1310, 1550
On-screen PASS/FAIL for the following popular cabling standards:

TIA-568
10G Ethernet
1G Ethernet
Legacy Cabling Standards
NO
Data Storage NO
Certification Reports NO
NIST Traceable


INSTALLER SERIES CERTIFICATION TEST KITS
Kit # Part Number Click the links below to view documentation
1) IS-KIT-Q Optical Power Meter Light Source(s) List Price
xx : specify light source connector type (SC,ST) Fiber OWL 4
(Model #: FO-4)
WaveSource Quad MM/SM
(Model #: WS-MDSDxx)
Multimode Port: 850/1300nm
Singlemode Port: 1310/1550nm
1640.00
  VIDEOS

IS-KIT-Q


MULTIMODE FIBER OPTIC LINK CERTIFICATION


SINGLEMODE FIBER OPTIC LINK CERTIFICATION


PRODUCT OVERVIEW

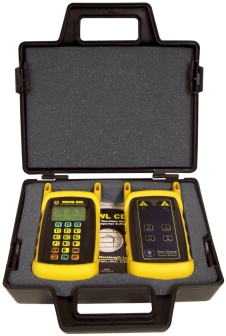

2) IS-KIT-M Optical Power Meter Light Source(s) List Price
xx : specify light source connector type (SC,ST) Fiber OWL 4
(Model #: FO-4)
WaveSource MM
(Model #: WS-MDxx)
Multimode Port: 850/1300nm
790.00
  VIDEOS

IS-KIT-M


MULTIMODE FIBER OPTIC LINK CERTIFICATION


PRODUCT OVERVIEW

Other Useful Links
Fiber OWL 4 Operations Guide
Fiber OWL 4 Firmware Update
OWL Reporter Software
(with USB driver support for Windows XP, Windows Vista, Windows 7, and Windows 8)
(Windows 2000 is not supported)
OWL Reporter Sample Report
Quick Reference Guide Selector
Self-diagnostic Procedure Selector
Power Meter Detector Port Cleaning Procedure
Light Source Optical Port Cleaning Procedure
NOTE: Patch cords are not included with OWL test kits. Please call 262-473-0643 for more information.
NOTE: Products ship with owner's manuals on CD. Adobe Acrobat Reader (tm) is required to view these documents.

HELPFUL VIDEOS


VIDEO:

Universal Ports


VIDEO:

Mandrels


VIDEO:

Fiber Optic Reference Methods


VIDEO:

Fiber Optic Cabling Standards


VIDEO:

Entering Data Into Text Entry Fields


VIDEO:

Storing Data in Fiber OWL certification power meters


VIDEO:

Removing Link Information and Stored Data


VIDEO:

Merging OWL Reporter Data Files


VIDEO:

Interpreting OWL Reporter Certification Reports


VIDEO:

Cleaning Optical Ports


VIDEO:

Replacing the Light Source Battery


VIDEO:

Replacing the Fiber OWL Optical Power Meter Battery


VIDEO:

MISCONCEPTION: Interchangeable Light Source Connector Ports


DISTRIBUTOR PARTICIPATION INFORMATION
OWL Installer Series Test Kits are available from participating OWL distributors and resellers.

Distributors and resellers who wish to participate in the Installer Series program should contact OWL at 262-473-0643 for more information.

AFL™ is a registered trademark of Alcoa Fujikura Limited.
