FIBER OWL 4 BOLT OPTICAL POWER METER

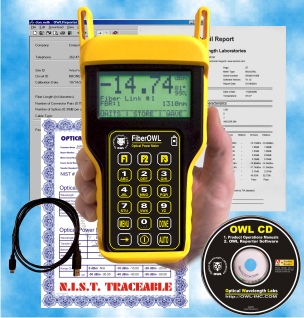

The Fiber OWL 4 BOLT is a high accuracy, high resolution, microprocessor controlled optical power meter. It has an attractive handheld case made from high impact plastic, a large, backlit, graphic, liquid crystal display, and 18-key keypad for easy data entry. The universal port accepts 2.5mm connectors, such as ST, SC, and FC, and also comes with a 1.25mm universal port, which can accept LC, MU, and other SFF connectors. It will operate for over 100 hours on a standard alkaline 9v battery and has built-in auto shutdown. A length testing port is included for end-to-end fiber optic link length measurements. The Fiber OWL 4 BOLT includes a built-in Link Wizard that calculates the allowable loss for the fiber runs being measuring. The meter stores physical fiber information for up to eight links. Link information includes: link name, date, fiber type, fiber length, connectors, splices, temperature, cabling standard, and calculated or entered reference power values for two wavelengths. In addition the meter will store up to 1000 measured data points with labels. Each value includes the fiber type and link. The stored information can be selectively viewed, edited (measured again), printed, or deleted. All of the stored data can be downloaded through the USB port to our free OWL Reporter software. SOONER OR LATER YOUR FIBER JOBS ARE GOING TO REQUIRE CERTIFICATION TESTING! IF YOU BUY A METER WITHOUT REPORT PRINTING CAPABILITIES YOU'LL JUST END UP BUYING YOUR METER ALL OVER AGAIN!	CLICK HERE FOR KIT VERSION

PRICING
Part #	Description	Detector Type	Dynamic Range	Integrated VFL	Integrated Length Tester	Price
FO-4B	Fiber OWL 4 BOLT	InGaAs	+5 to -70 dBm	No	Yes	895.00
FO-4V	Fiber OWL 4 VFL	InGaAs	+5 to -70 dBm	Yes	No	1095.00
NOTE: Fiber OWL 4 series optical power meters cannot contain a VFL and a length testing port in the same unit.
Fiber OWL 4 Optical Loss Test Sets
Part #	Description	Detector Type	Dynamic Range	Integrated VFL	Integrated Length Tester	Price
FO-4-SDxx	Fiber OWL 4 w/integrated dual-wavelength singlemode laser source	InGaAs	+5 to -70 dBm	No	Yes	1850.00
NOTE: a pair of FO-4-SDxx is required for two-way auto-testing. NOTE: Integrated Visual Fault Locator port not available on the FO-4-SDxx.
Fiber OWL 4 Series Optical Power Meters for high-power applications
Fiber OWL 4 series optical power meters can also contain a filtered detector typically used for telco and other ultra high-power application testing. Please call 262-473-0643 if you have any questions and we'll help you find the right meter for your needs.

KEY BENEFITS Multimode and singlemode ready NIST Traceable One user-definable wavelength: between 700 and 1700 nm Link Wizard certifies fiber links using fiber loss parameters from popular industry standards, including Fiber To The Home (FTTH), TIA-568 and Ethernet Fiber optic link length measurement capability Two user-definable standards Auto-wavelength recognition (when used with OWL WaveSource light sources) Automatic dual-wavelength reference storage and data storage Stores information for up to 1000 data points in 8 different link configurations USB interface for downloading data Free OWL Reporter PC software for printing professional certification reports High resolution - 0.01 dB High accuracy - 0.15 dB 75 dB dynamic range 2.5mm / 1.25mm universal detector port Long battery life: over 100 hrs. on a 9v alkaline battery Large backlit LCD display InGaAs detector High impact plastic case Optional Visual Fault Locator port (replaces length testing capability)

FIBER OWL 4 OPTIONS In addition to basic power meter functions, Fiber OWL 4 series optical power meters can be configured with one of two different fiber optic test options. PLEASE NOTE: ONLY ONE OF THESE OPTIONS CAN BE INSTALLED IN THE FIBER OWL 4, NOT BOTH
BEAMING OPTICAL LENGTH TESTER (BOLT) PORT		VISUAL FAULT LOCATOR PORT
	OR	Click the image to learn more

DOCUMENTS
Product Overviews	Operations Guide	Firmware Upgrade
Fiber OWL 4 BOLT	Fiber OWL 4 series Operations Guide (firmware version 4.65)	Fiber OWL 4 firmware upgrade page
Fiber OWL 4 VFL
Miscellaneous
OWL Reporter Software (with USB driver support for Windows XP, Windows Vista, Windows 7, and Windows 8) (Windows 2000 is not supported)
Quick Reference Guide Selector
Self-diagnostic Procedure Selector
Detector Port Cleaning Brochure

HELPFUL VIDEOS
VIDEO: Fiber OWL 4 BOLT Sales Video	VIDEO: Choosing a Test Kit	VIDEO: Universal Ports	VIDEO: Mandrels
VIDEO: Replacing the Battery in a Fiber OWL	VIDEO: Set User Information in a Fiber OWL	VIDEO: Interpreting OWL Reporter Certification Reports	VIDEO: Removing Link Information and Stored Data
VIDEO: Merging OWL Reporter Data Files	VIDEO: storing Data in Fiber OWL Certification Power Meters	VIDEO: Cleaning Optical Ports	VIDEO: Optical Length Measurement Methods
