028: Repeat "Test and Store"

⊴ PREV

NEXT ⊵

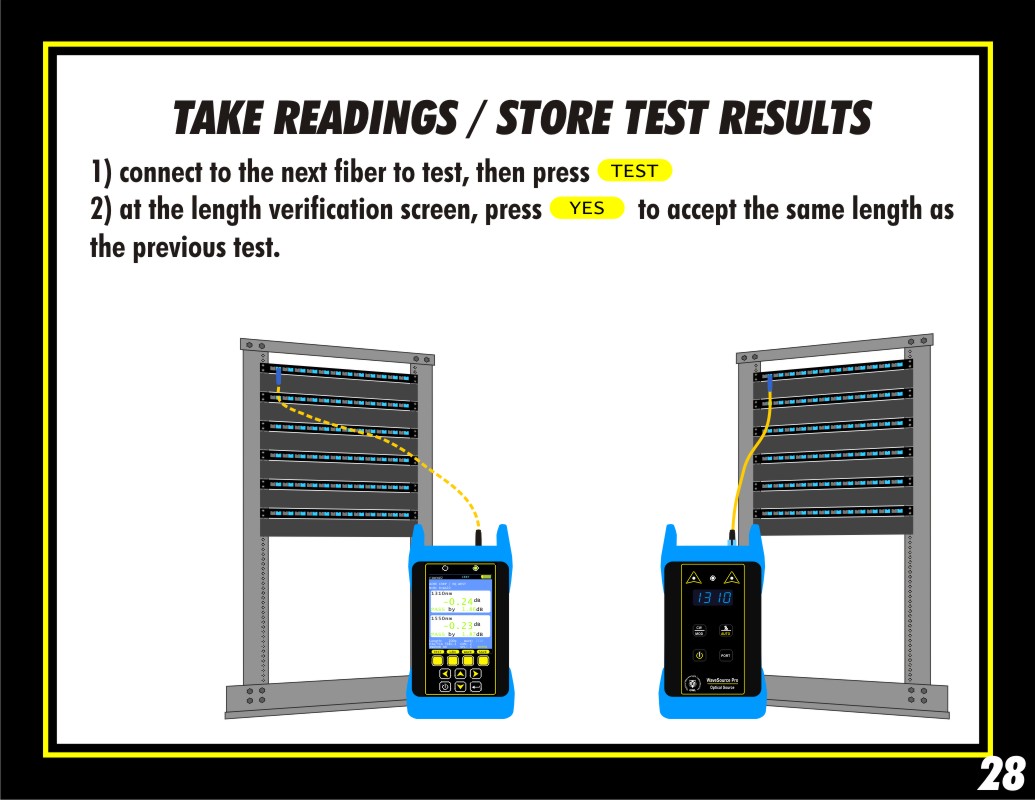

Connect the meter and source in to the next fiber to be tested, then press TEST to continue.

A warning screen will ask the user if they want to use the same length as the last test.

Typically the same length is used for all the fibers in this project, so press YES to use the same length.

The only reason to enter a new length is if the user wants to test another group of fibers that have the same overall test paramters, but the new cable has a different length.

Repeat the necessary steps for the rest of the fibers in the link under test.
