015: Connect Reference Cable

⊴ PREV

NEXT ⊵

Locate the appropriate test port on the light source for the fiber type to be tested.

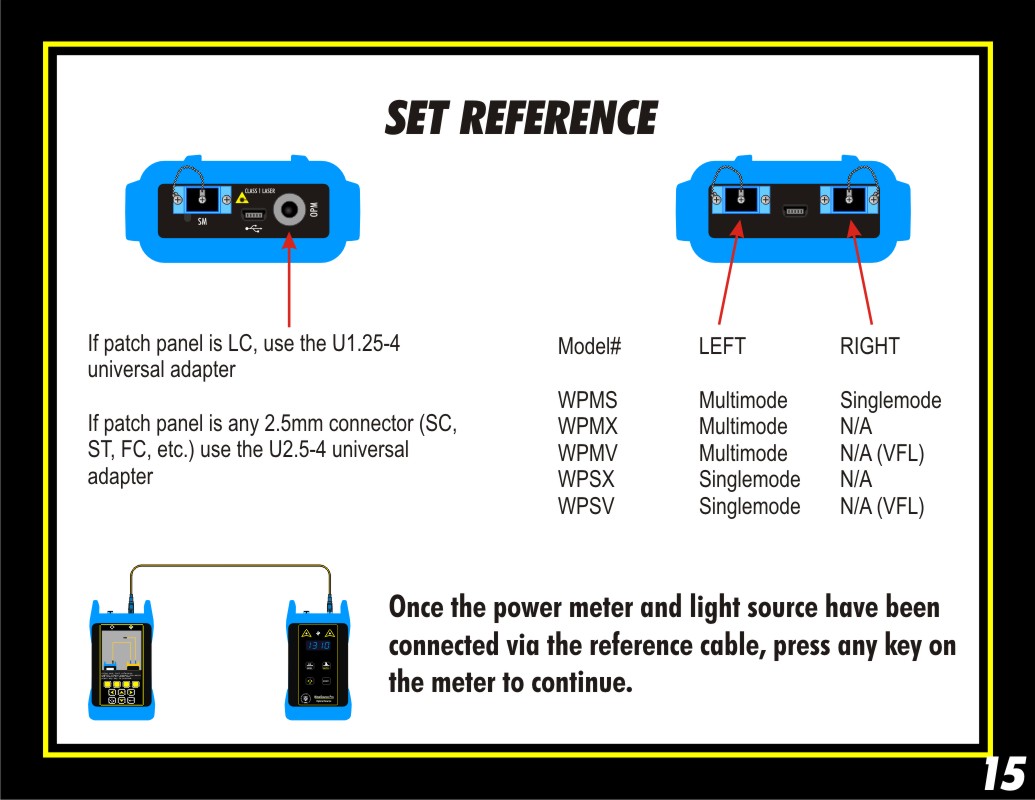

The below grid shows the various configurations for WaveSource Pro light sources:

Connect the reference cable to the appropriate light source port and the OPM port on the Fiber OWL 7 as shown on the meter screen.

Remember to put the correct universal adapter on the OPM port.

Press any key on the meter to continue.
