OWLTREK II MULTIMODE OTDR
			LIVE MODE Live mode is an advanced feature normally found in high-end OTDRs. Live mode continuously shoots OTDR traces every few seconds, allowing users to monitor changes in the optical fiber in real-time. In addition, when the OWLTrek II is attached to a PC, OWLView software includes a Live Viewer mode that takes the OTDR trace and expands it onto the PC display for easier viewing.
		FACTORY IN AMERICA'S HEARTLAND(click)

Looking for quad multimode & singlemode OTDR? Click

Pricing
	Part #	Description		OTDR Wavelength	OTDR Dynamic Range (Distance) *	Optional OPM Port**	Connector Style		List Price (USD)
	All specifications are preliminary
	WTO2-M13	OWLTrek 2 1300		1300nm	29 dB (12 miles) *	No	OTDR: LC VFL: LC		2085.00
	WTO2-M83	OWLTrek 2 850/1300		850/1300nm	27/29 dB (12 miles) *	No	OTDR: LC VFL: LC		2965.00
	WTO2-M13M	OWLTrek 2M 1300		1300nm	29 dB (12 miles) *	Yes; 2.5mm universal	OTDR: LC VFL: LC		2305.00
	WTO2-M83M	OWLTrek 2M 850/1300		850/1300nm	27/29 dB (12 miles) *	Yes; 2.5mm universal	OTDR: LC VFL: LC		3185.00
	FIBER RINGS (call for availability and custom configurations)
		Part #	Length		Fiber Type		Connector		Price
							A	B
		FR-M5-150-SCLC	150 meters		50/125um MM		SC/UPC	LC/UPC	255.00
		FR-M5-150-LCLC	150 meters		50/125um MM		LC/UPC	LC/UPC	255.00
		FR-M6-150-SCLC	150 meters		62.5/125um MM		SC/UPC	LC/UPC	255.00
		FR-M6-150-LCLC	150 meters		62.5/125um MM		LC/UPC	LC/UPC	255.00
	DEAD-ZONE BOXES
		Part #	Length		Fiber Type		Connector Type		Price
		DZB-M6-450	450 meters		62.5/125um multimode		SC/UPC		370.00
		DZB-M5-450	450 meters		50/125um multimode		SC/UPC		370.00
	LOOKING FOR A QUAD KIT OTDR? CLICK HERE FOR MORE INFORMATION
	* Dynamic Range / Distance: OWLTrek II multimode OTDRs are capable of finding breaks in multimode optical fibers up to 12 miles to within +/- 6 feet. Additional splices and other loss producing events will limit end distance estimates. This is true for all OTDRs. However, passive multimode links are rarely longer than 1.25 miles long! At that short distance, OWLTrek II has break-finding capability of about +/- 1 meter! In fact, increased dynamic range is actually a disadvantage in almost all cases because of the increased OTDR cost (usually thousands of dollars more).
	** Optional Integrated Optical Power Meter (OPM): models are available that include an integrated optical power/loss meter.  Below are the specifications of the OPM port.
	Photodetector: Connector: Fiber Type: Calibrated Wavelengths: Accuracy: Resolution: Measurement Units: Measurement Range:	InGaAs Universal with 2.5mm & 1.25mm adapters Multimode/Singlemode 850, 980, 1300, 1310, 1490, 1550, 1625nm +/- 0.15 dB 0.01 dB dBm, dB +5 to -50 dBm (typical; range varies with wavelength)
	Customers outside the US: Prices shown are in US Dollars only. Your local price will be different due to additional duties, taxes, currency conversion, shipping/handling, and other charges related to delivering product to your country. Your local distributor can give you complete pricing in your area. Click here if you need assistance with locating a distributor in your area.

	With an unbeatable combination of a small pocket-sized form factor, a high-resolution color LCD display, and some of the lowest pricing in the industry, the OWLTrek II OTDR from OWL is the WISE choice for cost-conscious buyers who only need to perform basic troubleshooting or restoration tasks on multimode optical fiber networks. All this from an OTDR that really is pocket-sized and fair priced, yet having comparable features and specifications to other OTDRs in its class. Affordability. In a time when it is becoming increasingly difficult to justify equipping an entire technical staff with high-end equipment, companies are even more cost-conscious than before. These companies outfit a majority of their installation/repair personnel with OWLTrek II OTDRs, and set aside a few high-end “expert” devices for high-priority jobs. Call OWL at 262-473-0643 for more information about this new and exciting development in OTDR testing, and discover why OWL is the wise choice in fiber test equipment!		(click image for larger, more detailed picture) (quarter added to illustrate small hand-held size of OTDR)
	OTDR Product Brochure
	FEATURES & SPECIFICATIONS
	KEY SPECIFICATIONS Output wavelengths: 850 and 1300nm Dynamic range: 27 dB (850nm) / 29 dB (1300nm) Event Dead Zone: 2 meters (typical) Attenuation Dead Zone: 5 meters (typical) User-selectable Pulse Width: 1, 2, 5, 10, 20, 50, 100, 200 meters Distance Range: 12 miles (20 km) ORL Measurement: up to 76dB OTDR port: LC VFL port: LC KEY OPM SPECIFICATIONS ('M' models only) Detector: InGaAs Connector: Universal with 2.5mm & 1.25mm adapters Fiber Type: Multimode/Singlemode Calibrated Wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625nm Accuracy: +/- 0.15 dB Resolution: 0.01 dB Measurement Units: dBm, dB Measurement Range: +5 to -50 dBm (typical; range varies with wavelength)
	AUTOMATIC EVENT LOCATION / EVENT TABLES
	Automatic event location is an advanced feature normally found only in expensive, high-end OTDRs. The OWLTrek II OTDR now brings this feature to the entry-level OTDR market. The OWLTrek II OTDR includes an event table showing the location, type, reflectance level, and loss of each event. Users can select an event to view, and automatically zoom in on the event on the OTDR display.
	Image enhanced for photographic effect		NEW! With the release of firmware version 2.17, users can now view events as a graphical representation of their fiber link!
	AUTOMATIC SCREEN ROTATION
	The OWLTrek II OTDR may be pocket-sized, but the large 2.8” high-resolution color LCD display can show even the longest traces with ease. And, for greater viewing flexibility and trace detail, OWL has implemented state-of-the-art MEMS technology which “flips” the high-resolution color LCD display between portrait and landscape mode automatically. In landscape mode, a wider viewing area means greater viewing detail when zooming in on events.
			Integrated visual fault locator (VFL) port
	OWLVIEW SOFTWARE

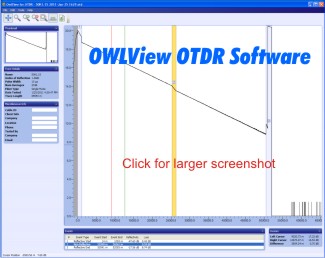

	OWLView software allows the user to download stored traces from the OWLTrek II OTDR to a PC. FEATURES INCLUDE: Event analysis Data storage using Telcordia GR-196 2.0 file format Printed reports for hard-copy record keeping Help menu with links to manuals, quick reference guides, and videos
	**- factors that limit OTDR distance range include splices, interconnections, fiber quality, fiber attenuation, and other loss inducing events such as micro-bends and macro-bends
	EACH UNIT INCLUDES: OWLTrek II Multimode OTDR Integrated Visual Fault Locator (VFL) port Hard-shell carrying case USB download cable Battery charger (US only) USB flash drive with OWLView trace software, USB driver, product manuals, and product videos
