OWLView for OCM software is included FREE with OWL optical channel monitor (OCM) products. Data can be downloaded from the OCM directly into the software with the download cable provided with your device. Once downloaded the data can be selectively viewed, printed, and saved using the intuitive, user-friendly graphical user interface.

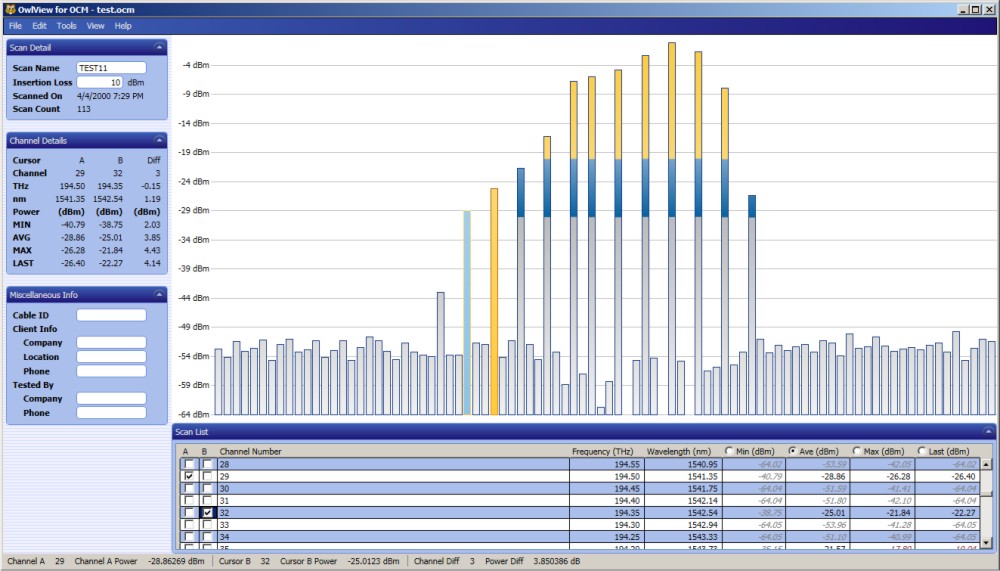

All channels included in the scan data are shown as a bar graph, with editable channel thresholds. Data is also included in tabular format, showing the minimum, maximum, average and last optical power measurements for each channel taken during the scan.

OWLView for OCM software requires a Pentium-class PC or better running Windows XP or later.

Click here to download OWLView for OCM software.


(click for larger image)

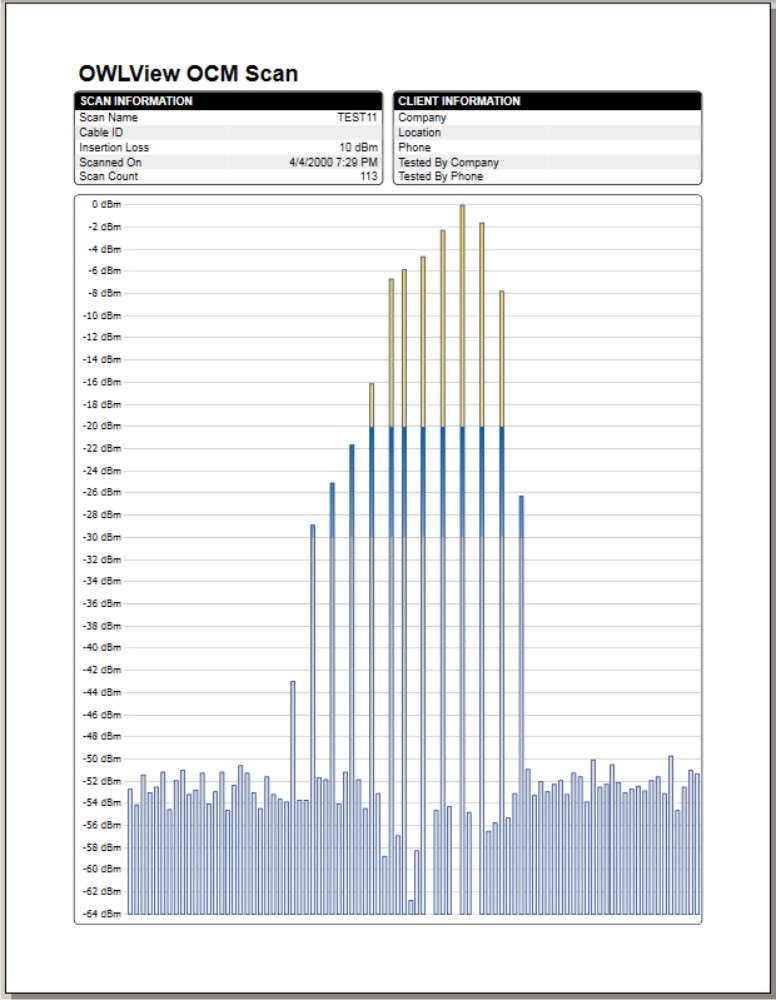

Page 1 (graph)

(click for larger image)

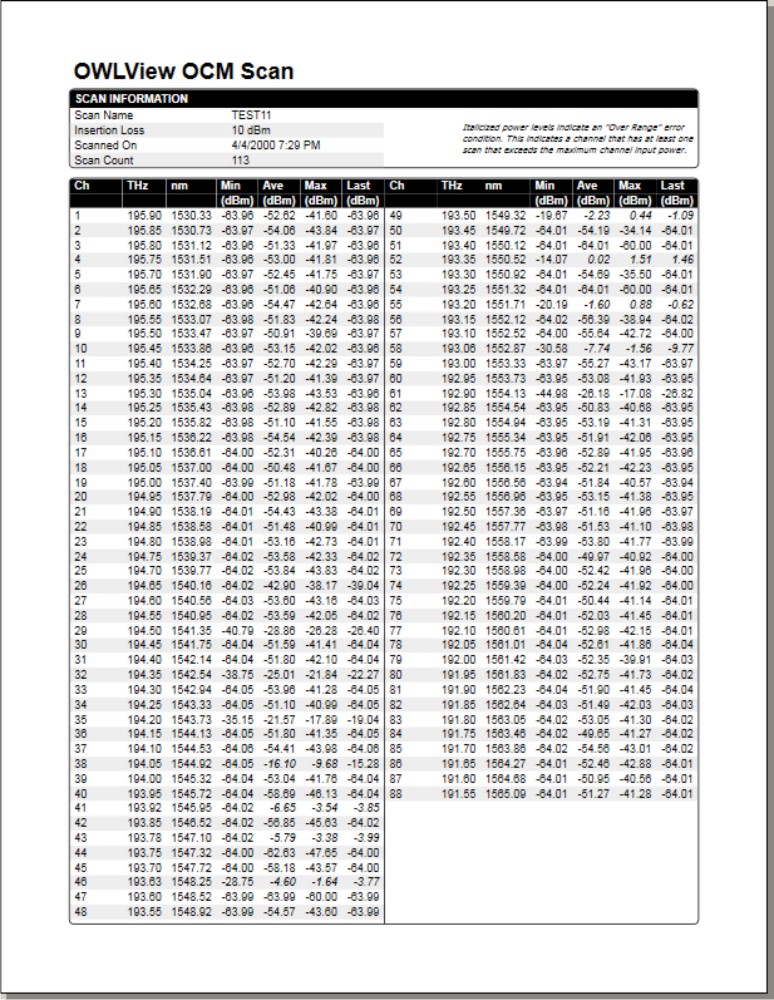

Page 2 (table)

(click for larger image)
click here to download a sample report
