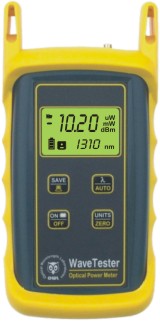

WAVETESTER OPTICAL POWER METER
The WaveTester is one of the world's most economical and accurate fiber optic link certification power meters delivering professional performance and a complete feature set for optical loss testing in both multimode and/or singlemode networks.

The WaveTester is offered in two models. The WT-1 is N.I.S.T. Traceable at four commonly used industry standard wavelengths (850, 1300, 1310, and 1550), as well as 1490nm for FTTH testing. This makes it an ideal choice for both multimode and singlemode testing.

Each model of the WaveTester can store reference values for all of its calibrated wavelengths, and displays optical power as an absolute value in dBm or relative to a user set "zero" reference in dB. Stored data points contain this reference information, and when data is downloaded into our free OWL Reporter software, the data can be certified using one of many popular cabling standards. OWL Reporter can also print professional-looking certification reports as proof to customers of a job well done. OWL Reporter data can also be saved to hard disk for later retrieval.

Other standard features include a backlit, easy-to-read LCD display and a 2.5mm universal detector port that is compatible with FC, ST, SC, DIN, and any other 2.5 mm ferrule connectors! No need to maintain expensive adapter caps! The WaveTester is protected from shock and droppage by an attractive rugged rubber boot.


WaveTester Optical Power Meter Sales Video


CLICK HERE FOR KIT VERSION

HELPFUL VIDEOS


VIDEO:

WaveTester Sales Video


VIDEO:

Choosing a Test Kit


VIDEO:

Universal Ports


VIDEO:

Mandrels


VIDEO:

Replacing the Battery


VIDEO:

Cleaning Optical Ports


VIDEO:

Interpreting OWL Reporter Certification Reports


 VIDEO:

Deleting Stored Data


VIDEO:

Merging OWL Reporter Data Files

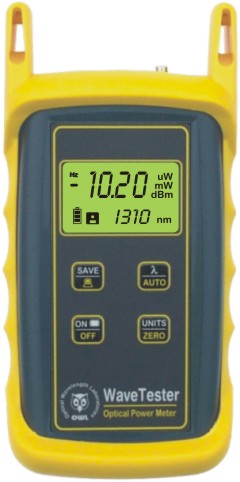

(click image for larger, more detailed picture)
KEY BENEFITS
  • InGaAs photodetector
  • 2.5mm / 1.25mm universal connector
  • Multimode and singlemode ready
  • NIST Traceable
  • Separate zero reference for each calibrated wavelength
  • Small, hand-held size
  • Ergonomic protective rubber boot
  • Up to 200 stored data points
  • Built-in Loss Wizard certifies fiber links against a myriad of national and international cabling standards
  • USB Data Interface
  • Freee OWL Reporter PC software for printing professional certification reports
  • Long battery life: over 250 hrs. on a 9v alkaline battery
  • Large backlit LCD display
  • Battery life, stored data, temperature and power units indicator
  • Simple 4-button operation
  • Measurement range: +5 to -60 dBm
  • Absolute accuracy: +/- 0.15 dB
  • Resolution: 0.01dB
OPTIONAL



Flashing red Visual Fault Locator (VFL; also known as VFF)

Click the image to learn more about the integrated VFL port

PRICING
Part # Description Detector Type Dynamic Range Integrated VFL Price
WT-1 WaveTester InGaAs +5 to -60 dBm No 450.00
WT-1V WaveTester VFL InGaAs +5 to -60 dBm Yes 650.00

DOCUMENTS
Product Overviews Operations Guide Firmware Upgrade
WaveTester WaveTester series Operations Guide WaveTester firmware upgrade page
WaveTester VFL

Miscellaneous
OWL Reporter Software (with USB driver support for Windows XP, Windows Vista, Windows 7, and Windows 8)
(Windows 2000 is not supported)
Quick Reference Guide Selector
Self-diagnostic Procedure Selector
Detector Port Cleaning Brochure
