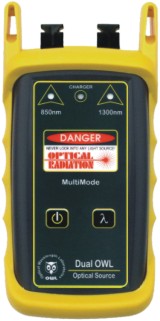

Dual OWL 850/1300nm Multimode Light Source
NOTE: THIS PRODUCT REPLACES THE Dual OWL Multimode Light Source (SKU: DO-1)

The Dual OWL is a cost effective, compact, handheld light source.  The temperature compensated outputs are calibrated to couple -20dBm  of optical power into multimode fiber.  The light source is offered with both 850nm and 1300nm sources installed.

The source is simple to operate with an intuitive 2-button interface.  One button controls power, and the other selects the output wavelength.  LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power.

Key Benefits

bulletHighly stabilized
bulletTemperature Compensated
bullet-20dBm Calibrated Output (Customizable)
bulletCompact Size
bulletRugged & Economical
bulletExtended Battery Life
bulletLow Battery Indicator
bulletNIST Traceable
bulletAvailable with ST or SC connectors




Pricing
SKU # Description (click link in table for PDF Datasheet) Price
DO2st 850 & 1300nm Multimode Stabilized LED Light Source (ST connector) 385.00
DO2sc 850 & 1300nm Multimode Stabilized LED Light Source (SC connector) 420.00

NEVER BUY ANY SOURCE WITHOUT U.S. GOVERNMENT N.I.S.T. TRACEABLE ACCOUNTABILITY!

Documents
Dual OWL Datasheet Dual OWL Series Manual

Products ship with owner's manuals on CD.  Adobe Acrobat Reader (tm) is required to view these documents.



OWL manufactures a complete line of fiber optic test equipment for a wide range of applications, including telco, WAN, MAN, LAN, CATV, IT, manufacturing, and laboratory.

OWL's complete line of fiber optic testers have capabilities ranging from simple optical power and optical loss measurement to complete standards-based fiber optic link certification for both multimode and singlemode fibers, including 10-Gigabit Ethernet!

Product lines include: optical power meters, light sources, talk sets, optical length testers, visual fault locators and serial plastic fiber transceivers. All OWL optical power meters and light sources are NIST traceable.

COMING SOON: optical time domain reflectometer (OTDR)

For more information or for assistance in choosing the right fiber optic test equipment for your needs, send us an information request and we would be happy to assist you.
