BOLT-NL (BEAMING OPTICAL LENGTH TESTER)
WHY BUY THE BOLT-NL?

(1) SOONER OR LATER YOUR FIBER JOBS ARE GOING TO REQUIRE Meter based Length testing!

(2) Fiber installations are increasingly required to have fiber length measurements to comply with bid requirements. Rather than purchase expensive certification test sets, the BOLT can be added to an installer’s existing fiber test kit for a fraction of the cost.

(3) You won’t find a better value on fiber optic test equipment anywhere! This item sells for only $575.00 !
HELPFUL VIDEOS


VIDEO:

Replacing the battery


VIDEO:

Cleaning optical ports


VIDEO:

Optical Length Measurement Methods
NOTE: The BOLT-NL is not designed to measure distance to a fault like an OTDR.

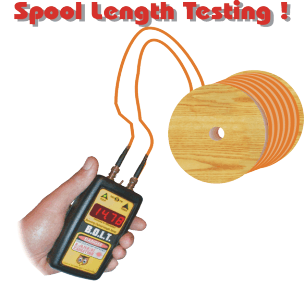

The BOLT-NL is designed to measure the end-to-end length of a fiber cable. A pair of terminated fibers, looped back at the far end of the cable, are required for end-to-end fiber cable length measurement.
The BOLT-NL uses a "looped" method of measuring fiber length. This is accomplished by looping back two fibers at one end of the fiber run with a patch cord. The round trip time that the light takes to travel through the fibers is converted to length in kilometers, then divided by two to show the length of the fiber cable. There is no need to measure the length of all the fibers; the length measurement can be applied to all fibers in the cable. This method of length testing provides accurate measurements, and saves time and money.

Optical length testers save time by eliminating the need to measure fiber by the cable jacket. Fiber links may also go through multiple cross-connects or have splices in the middle, thereby making jacket markings invalid. Optical measurement of fiber produces accurate results without the need for jacket markings.

Optical measurement also saves time by eliminating the need to estimate the length of the fiber run with a measuring wheel. This method is especially troublesome and inaccurate in networks that traverse walls, are in a star topology, or contain riser cables.

The BOLT-NL measures fiber links of up to 25 kilometers, and is accurate to within ±2.5 meters. Pulsing mode allows for fiber location with fiber identifiers.

IMPORTANT: BOLT-NL IS NOT DESIGNED TO FIND DISTANCE TO A FAULT OR REFLECTION.
KEY BENEFITS
  • Measures the length of both singlemode and multimode fiber with accuracy of ± 2.5 meters
  • Generates a 2kHz pulsed signal for use with fiber identifiers
  • Easy-to-read bright red 7-segment LED display
  • 15 hours continuous use on one 9v battery
  • Low battery indicator
  • Handheld
  • Lightweight

Pricing
Part # Description Price
BOLT-NL Beaming Optical Length Tester 575.00
