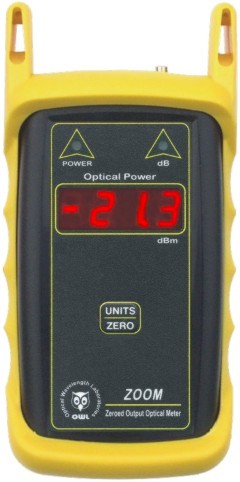

ZOOM (Zeroed Output Optical Meter) Optical Power Meter
NOTE: THIS PRODUCT IS OBSOLETE AND HAS BEEN REPLACED BY THE ZOOM II OPTICAL POWER METER (SKU: ZO2)


CLOSEOUT SALE!

WHILE SUPPLIES LAST!

The ZOOM optical power meter (SKU: ZOUFX) is being offered at a reduced price as a manufacturer's closeout.  This offer is only available directly through OWL and supplies are limited.

Call 262-473-0643 for more information.

The ZOOM is one of the world's most economical and precise fiber optic power meters delivering professional performance and a complete feature set for optical loss testing in both multimode and/or single-mode networks.

The ZOOM is offered in two models.  The ZOOM is N.I.S.T. Traceable at three commonly used industry standard wavelengths (850, 1300/1310, and 1550).  This makes it an ideal choice for both multimode and singlemode testing.

The ZOOM can store reference values for all of its calibrated wavelengths, and displays optical power as an absolute value in dBm or relative to a user set "zero" reference in dB.  A single switch selects between its calibrated wavelengths and the zero button allows the user to switch between dBm and dB or set the zero reference power.

Other standard features include a 3 digit, 0.1dB resolution display and a 2.5mm Universal detector port that is compatible with FC, ST, SC, DIN, and any other 2.5 mm ferrule connectors!

The ZOOM also comes with low battery warning and a free rugged rubber boot.

Call OWL at 262-473-0643 for more details!

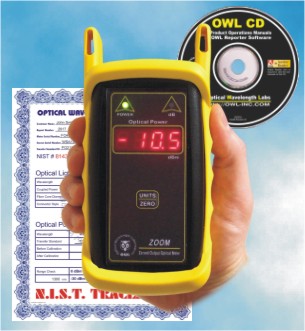

(click image for larger, more detailed picture)
Key Benefits
bulletGermanium photodetector
bullet2.5mm universal connector
bulletMultimode and singlemode ready
bulletNIST Traceable at all wavelengths
bulletSeparate zero reference for each calibrated wavelength
bulletSmall, hand-held size
bullet Ergonomic protective rubber boot
bulletLong battery life - over 15 hrs on one 9v battery
bulletBright 3-digit display allows accurate readings in both absolute dBm and relative dB
bulletPower on/low battery indicator and dB/dBm indicator
bulletWavelength selection switch and zero button provide simple operation
bulletMeasurement range: +3 to -52 dBm
bulletAbsolute accuracy: +/- 0.24 dB
bulletResolution: 0.1dB
bulletLinearity: +/- 0.20dB

Pricing


SKU #
Description - Click links below  for datasheets
 Detector Type Dynamic Range

Price
ZOUFX ZOOM Universal (multimode & singlemode)
(reads 850,1300/1310 & 1550)
Germanium +3 to -52 dBm 144.50

NEVER BUY ANY POWER METER WITHOUT U.S. GOVERNMENT N.I.S.T. TRACEABLE ACCOUNTABILITY!

Documents

ZOOM Datasheet ZOOM Users Manual

Products ship with owner's manuals on CD.  Adobe Acrobat Reader (tm) is required to view these documents.
