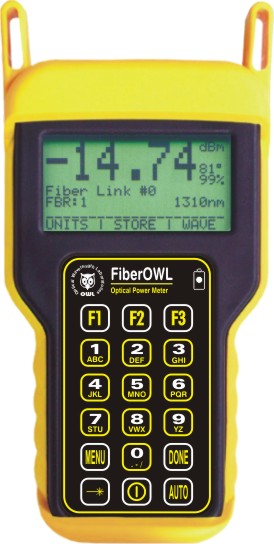

Fiber OWL 4 Optical Power Meters

The Fiber OWL 4 is a high accuracy, high resolution, microprocessor controlled optical power meter.  It has an attractive handheld case made from high impact plastic, a large, backlit, graphic, liquid crystal display, and 18-key keypad for easy data entry.  The universal port accepts 2.5mm connectors, such as ST, SC, and FC, and also comes with a 1.25mm universal port, which can accept LC, MU, and other SFF connectors.  It will operate for over 100 hours on a standard alkaline 9v battery and has built-in auto shutdown.  A length testing light source comes standard for fiber optic link length measurements.

The Fiber OWL 4 includes a built-in link wizard that easily calculates the allowable loss for the fiber runs being measuring.  The meter stores physical fiber information for up to eight links.  Link information includes: link name, date, fiber type, fiber length, connectors, splices, temperature, cabling standard, and calculated or entered reference power values for two wavelengths.

In addition the meter will store up to 1000 measured data points with labels.  Each value includes the fiber type and link.  The stored information can be selectively viewed, edited (measured again), printed, or deleted.  The meter will print formatted reports of selected stored data directly using the built in serial port, or all of the stored data can be downloaded to our free OWL Reporter software.

SOONER OR LATER YOUR FIBER JOBS ARE GOING TO REQUIRE CERTIFICATION TESTING!

IF YOU BUY A METER WITHOUT REPORT PRINTING CAPABILITIES YOU'LL JUST END UP BUYING YOUR METER ALL OVER AGAIN!



Click image for Fiber OWL 4 test kits



(click image for larger, more detailed picture)

Key Benefits:
bulletMultimode and singlemode ready
bulletNIST Traceable
bulletOne user-definable wavelength: between 700 and 1700 nm
bulletLink Wizard certifies fiber links using fiber loss parameters from popular industry standards, including Fiber To The Home (FTTH), TIA-568 and Ethernet
bulletFiber optic link length measurement capability
bulletTwo user-definable standards
bulletAuto-wavelength recognition (when used with OWL WaveSource light sources)
bulletAutomatic dual-wavelength reference storage and data storage
bulletStores information for up to 1000 data points in 8 different link configurations
bulletSerial interface for downloading and/or printing data
bulletFree OWL Reporter software (PC) for printing professional certification reports
bulletHigh resolution - 0.01 dB
bulletHigh accuracy - 0.15 dB
bullet75 dB dynamic range
bullet2.5mm / 1.25mm universal detector port
bullet

Long battery life: over 100 hrs. on a 9v alkaline battery

bulletLarge backlit LCD display
bulletInGaAs detector
bulletHigh impact plastic case
bulletOptional Visual Fault Locator port (replaces length testing capability)


FIBER OWL 4 OPTIONS

In addition to basic power meter functions, Fiber OWL 4 series optical power meters can be configured with one of two different fiber optic test options.

PLEASE NOTE: ONLY ONE OF THESE OPTIONS CAN BE INSTALLED IN THE FIBER OWL 4, NOT BOTH

Integrated Optical Length Tester Port

Integrated Visual Fault Locator Port



VFL NOT INCLUDED

Flashing red Visual Fault Locator (VFL; also known as VFF)

Click the image to learn more about the integrated VFL port

Pricing

SKU

Old SKU

Description

Detector Type

Dynamic Range

Integrated VFL

Integrated Length Tester

Price
FO-4B   Fiber OWL 4 BOLT InGaAs +5 to -70 dBm No Yes 895.00
FO-4V   Fiber OWL 4 VFL  InGaAS +5 to -70 dBm Yes No 1095.00

NOTE: Fiber OWL 4 series optical power meters cannot contain a VFL and a length testing port in the same unit.

Fiber OWL 4 Optical Loss Test Sets

SKU

Description

Detector Type

Dynamic Range

Integrated Length Tester

Price
FO-4-SDxx Fiber OWL 4 w/integrated dual-wavelength singlemode laser source InGaAs +5 to -70 dBm Yes 1850.00
NOTE: a pair of FO-4-SDxx is required for two-way auto-testing.

NOTE: Integrated Visual Fault Locator port not available on the FO-4-SDxx.



Fiber OWL 4 Series Optical Power Meters for high-power applications

Fiber OWL 4 series optical power meters can also contain a filtered detector typically used for telco and other ultra high-power application testing.  Please call 262-473-0643 if you have any questions and we'll help you find the right meter for your needs.

Documents

Data Sheets  Operations Guides Firmware Upgrade Quick Reference Guides
Fiber OWL 4 BOLT Datasheet  Fiber OWL 4 series Operations Guide (firmware version 4.65) Fiber OWL 4 firmware upgrade page KIT-FO4B-D2xx
Fiber OWL 4 VFL Datasheet      KIT-FO4B-L2xx
      KIT-FO4B-WSMDxx
      KIT-FO4B-WSSDxx
      KIT-FO4-D2xx
      KIT-FO4-L2xx
      KIT-FO4-WSMDxx
      KIT-FO4-WSSDxx

Miscellaneous
OWL Reporter Software
USB Driver Installer
Power Meter Check Brochure (using Dual OWL multimode sources)
Power Meter Check Brochure (using Laser OWL singlemode sources)
Power Meter Check Brochure (using WaveSource multimode sources)
Power Meter Check Brochure (using WaveSource singlemode sources)

Detector Port Cleaning Brochure

Products ship with owner's manuals on CD.  Adobe Acrobat Reader (tm) is required to view these documents.
