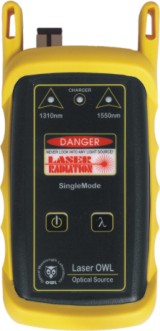

Laser OWL 1310 HP HIGH-POWER SINGLEMODE LASER SOURCE
The Laser OWL 1310 HP (High-Power) is a cost effective, compact, handheld laser light source. The temperature compensated outputs are calibrated to couple 0dBm of optical power into singlemode fiber. The light source is offered in a single 1310nm version, and can be easily upgraded to include a 1550nm laser.

The source is simple to operate with an intuitive 2-button interface: one button controlling power and the other for selecting output wavelength. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power.
  KEY BENEFITS
  • Highly stabilized
  • Rugged & Economical
  • -10dBm Calibrated Output (Customizable)
  • Compact Size
  • Photodiode Compensated
  • Extended Battery Life
  • Low Battery Indicator
  • NIST Traceable
  • Available with SC, ST, or FC connectors

Why is NIST traceability important?
Click here to find out why.

Pricing
Part # Description Price
LO2-13HP-ST 1310nm stabilized 0dBm single mode laser source with ST connector 875.00
LO2-13HP-SC  1310nm stabilized 0dBm single mode laser source with SC connector   875.00
LO2-13HP-FC 1310nm stabilized 0dBm single mode laser source with FC connector   875.00
NEVER BUY ANY SOURCE WITHOUT U.S. GOVERNMENT N.I.S.T. TRACEABLE ACCOUNTABILITY!

Documents
Laser OWL 1310 HP Datasheet Laser OWL Series Operations Guide

HELPFUL VIDEOS


VIDEO:
Cleaning Optical Ports

VIDEO:
MISCONCEPTION: Interchangeable Light Source Connector Ports
