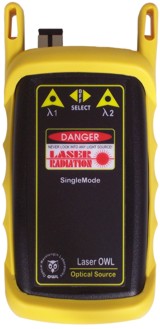

1310 OWL Singlemode Laser Source

NOTE: THIS PRODUCT IS OBSOLETE AND HAS BEEN REPLACED BY THE Laser OWL 1310 Singlemode Light Source (SKU: LO2-13xx)

The 1310 OWL is a cost effective, compact, handheld laser light source.  The temperature compensated outputs are calibrated to couple -10dBm of optical power into singlemode fiber.  The light source is offered with a single 1310nm laser installed, and can be easily upgraded to include a 1550nm source.

The source is simple to operate with a single switch controlling power and selecting the output wavelength.  LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power.

Key Benefits

bulletHighly stabilized
bulletRugged & Economical
bullet-10dBm Calibrated Output (Customizable)
bulletCompact Size
bulletPhotodiode Compensated
bulletExtended Battery Life
bulletLow Battery Indicator
bulletNIST Traceable
bulletAvailable with FC, SC, or ST fiber connectors



Pricing

SKU #

Description

Price

We also have a 0dBm high-power (HP) version of this source.  Click here for details!
LO-1310ST 1310nm stabilized -10dbm single mode laser source with ST connector 645.00
LO-1310SC 1310nm stabilized -10dbm single mode laser source with SC connector 645.00
LO-1310FC 1310nm stabilized -10dbm single mode laser source with FC connector 645.00

NEVER BUY ANY SOURCE WITHOUT U.S. GOVERNMENT N.I.S.T. TRACEABLE ACCOUNTABILITY!

Documents

Laser OWL Datasheet Laser OWL Manual

Products ship with owner's manuals on CD.  Adobe Acrobat Reader (tm) is required to view these documents.



OWL manufactures a complete line of fiber optic test equipment for a wide range of applications, including telco, WAN, MAN, LAN, CATV, IT, manufacturing, and laboratory.

OWL's complete line of fiber optic testers have capabilities ranging from simple optical power and optical loss measurement to complete standards-based fiber optic link certification for both multimode and singlemode fibers, including 10-Gigabit Ethernet!

Product lines include: optical power meters, light sources, talk sets, optical length testers, visual fault locators and serial plastic fiber transceivers. All OWL optical power meters and light sources are NIST traceable.

COMING SOON: optical time domain reflectometer (OTDR)

For more information or for assistance in choosing the right fiber optic test equipment for your needs, send us an information request and we would be happy to assist you.
